Pacer T Power Supply

The Pacer T Solid State, High-Frequency Power Supply

Frequency Range: 1-100 kHz
Power Range: 50-8,000 kW (8 MW)

The Pacer T is one of our most versatile power supplies. The standard IGBT transistors combine high frequency and fast switching, making this power source ideal for all induction applications.

Features & Benefits:

  • IGBT inverter technology
  • Solid state frequency conversion
  • Single board logic control
  • Built-in diagnostics
  • Water cooled with optional side-mount water system
  • Complete short circuit protection
  • Digital metering
  • Cabinet isolation for controls
  • Continuous power control from 1% to 110%
  • Under-voltage main circuit breaker trip
  • Internal load matching components
  • HMI dashboard

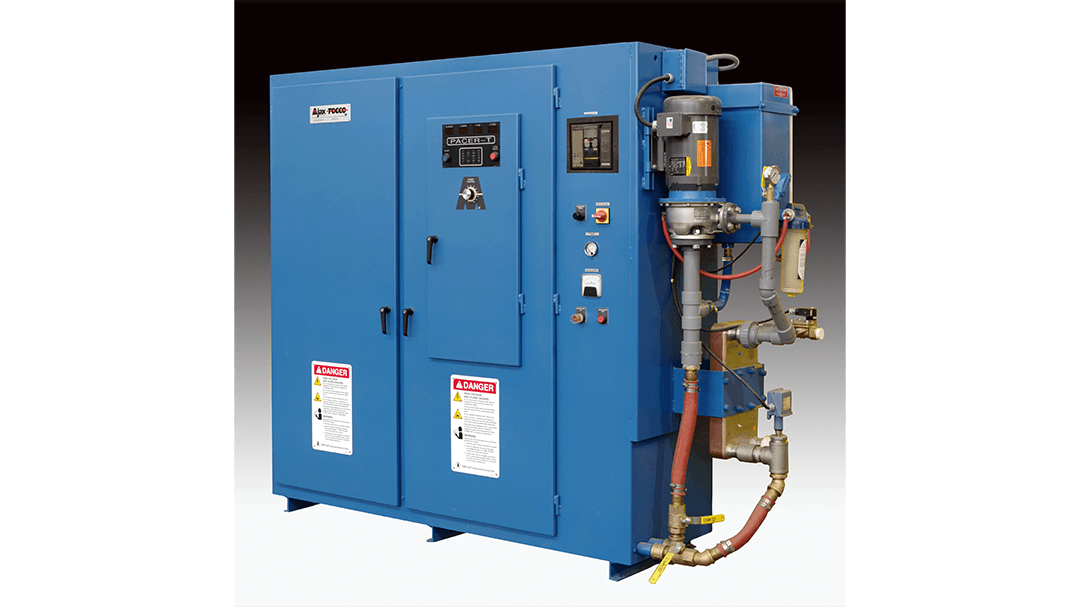

Power Supply PacerT blue

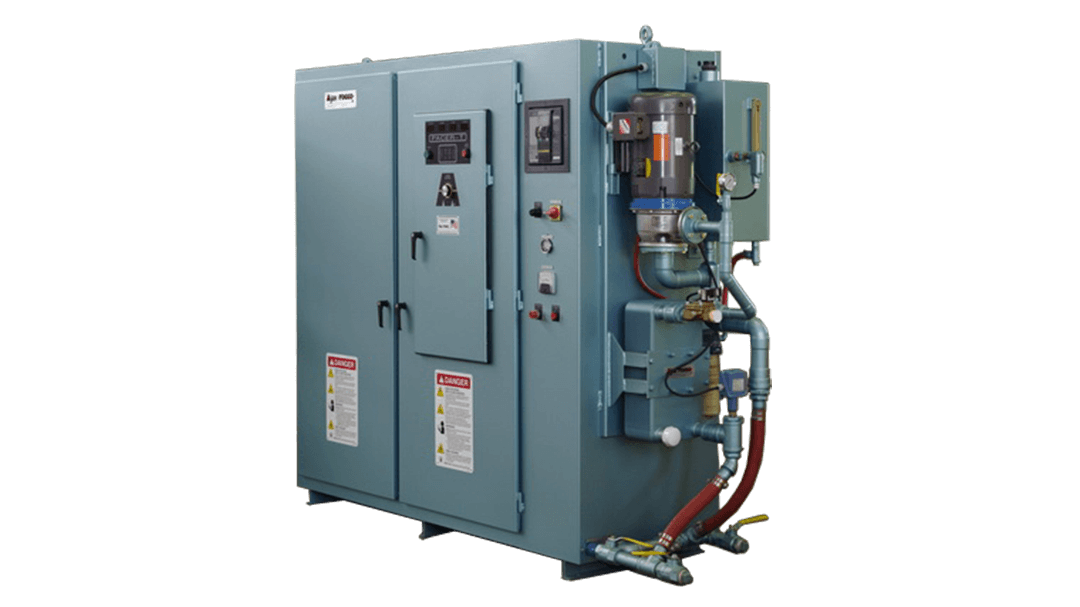

Power Supply PacerT light blue

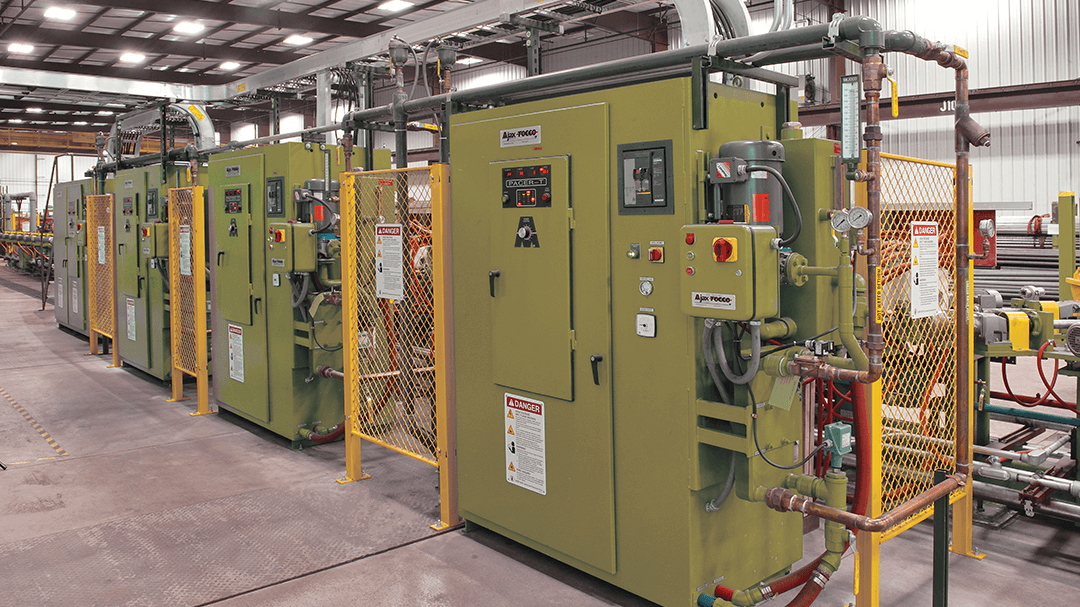

Power-Supply-PacerT-beige_1080x607px



Power Supply PacerT blue
Power Supply PacerT light blue
Power-Supply-PacerT-beige_1080x607px

Discuss Your Power Supply Needs

CONTACT US

Providing Heating & Melting Solutions Since 1916

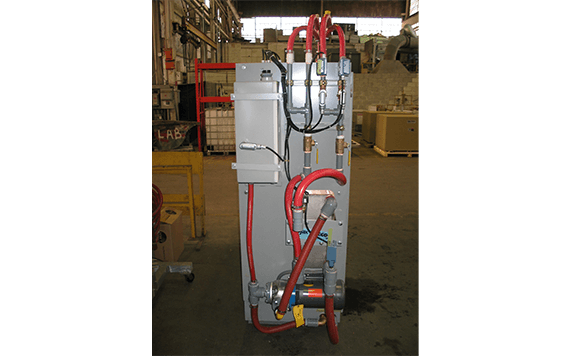

Optional Side-Mounted Water Supply

The optional side-mount water supply features all non-ferrous components with a self-contained pump and motor and a high-efficiency heat exchanger that ensures high-quality water is fed to the critical components.



Power Supply PacerT side mount water

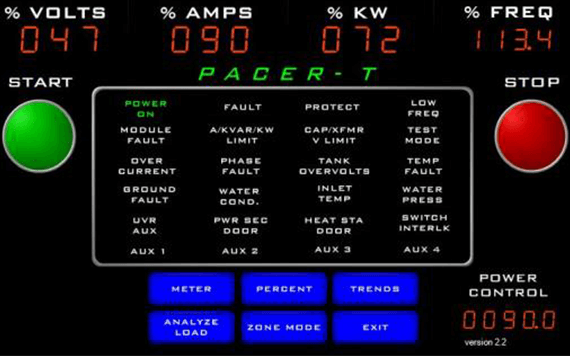

Touchscreen Diagnostics

The touchscreen display allows for convenient monitoring and helpful troubleshooting steps.
Optional water path temperature monitoring is available.



Power Supply PacerT HMI Display
