Pacer T Compact Power Supply

The Pacer T Compact Solid State, High-Frequency Power Supply

Frequency Range: 3-100 kHz
Power Range: 25-150 kW

The Pacer T compact is the smaller version of our Pacer T power supply. The compact features a smaller footprint for applications requiring power from 25-150 kW. The standard IGBT transistors combine high frequency and fast switching, making this power source ideal for a variety of induction applications.

Features & Benefits:

  • Precision control
  • High-resolution, all-digital logic display
  • Reduction in energy consumption
  • Reduced water consumption – efficient inverter circuit and air-cooled DC front end minimizes cooling water requirements
  • Compact, rugged system, dependable in harsh industrial environments
  • Conservative 100% duty cycle rating
  • Fiber optic gate drive isolation
  • 3-100 kHz frequency range (ideal for heating medium diameter bars, tubing, and medium depth case hardening, etc.)
  • State-of-the-art power conversion technology
  • On board, industrial, color touchscreen display for meter reading and system diagnostics
  • Load matching flexibility eases tuning for optimum power transfer
  • Internal trending and data logging
  • Nominal 4 to 1 window at full power
  • Transformer isolated output
  • Internal load matching components for a reduced footprint and simplified installation
  • Optional remote heat station
  • CE certification available

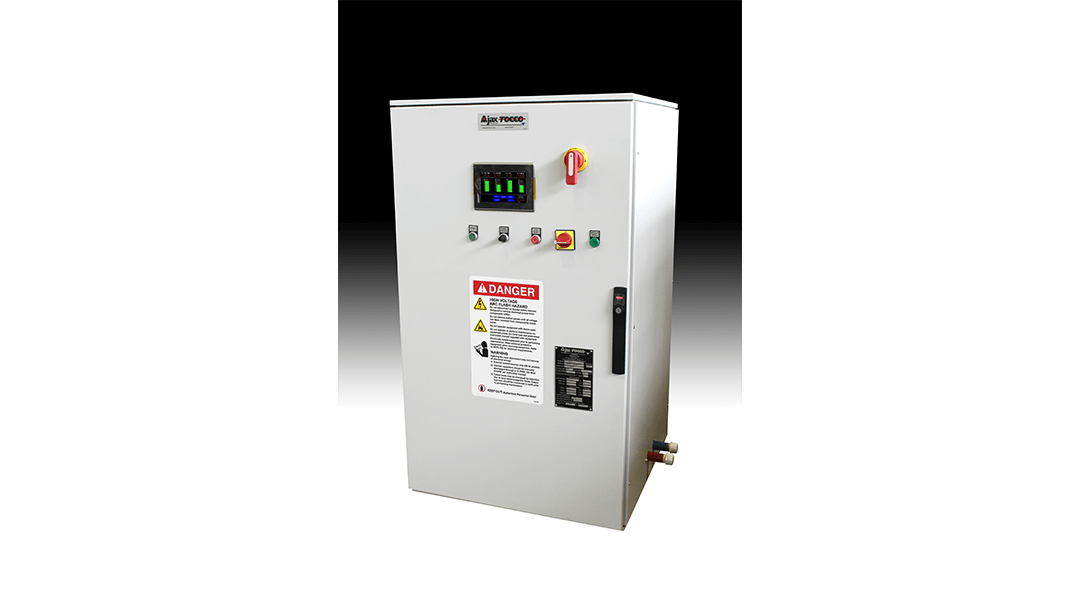

Power Supply Pacer T Compact

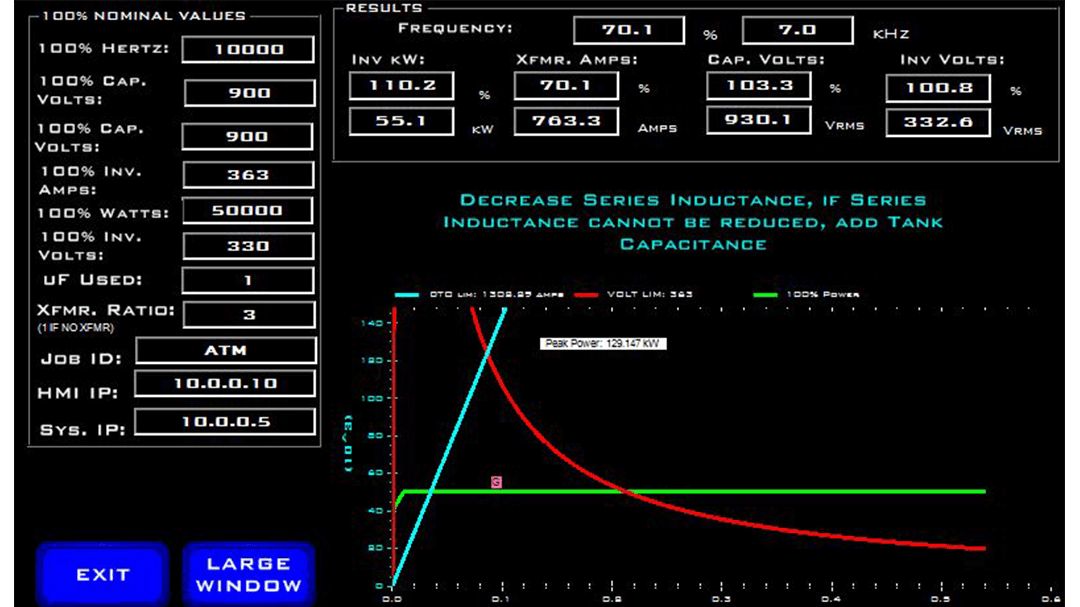

Power Supply Pacer T Compact Load Match Conductance Screen

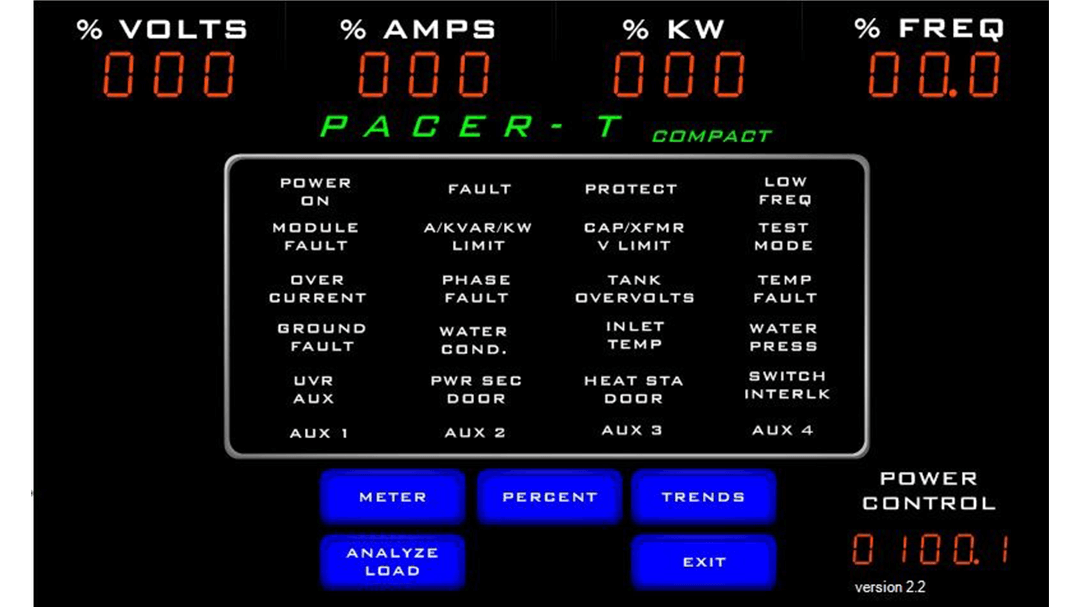

PacerT Compact HMI Screen



Power Supply Pacer T Compact
Power Supply Pacer T Compact Load Match Conductance Screen
PacerT Compact HMI Screen
