Induction Valve Seat Removal (IVSR) Systems
Non-contact, Flameless Induction Valve Seat Removal (IVSR) and Powertrain Reman Systems
Ajax TOCCO Magnethermic’s IVSR systems have revolutionized heavy-duty engine remanufacturing operations, specifically in the time-consuming task of removing pressed-in valve seats from engine cylinder heads. Ajax TOCCO’s IVSR process has increased the profitability of engine reman facilities globally, while simultaneously increasing quality, efficiency, core retention rates, operator safety, and ergonomics. Our IVSR technology is so effective, valve seats can be easily removed with minimal force, saving valuable time and money. By way of induction, valve seats are heated and cooled in seconds, resulting in the mechanical shrinking of the pressed-in seats. No subsequent machining is needed for valve seats or seat recesses, which means the valve seats can be replaced over and over, extending the life of the cylinder head.
- Eliminates open flame, cutting, welding, and kinetic force
- Increases core recovery rates
- Eliminates collateral damage to heads
- Increases production rates
- Reduces time-consuming machining and labor hours
- Improves operator comfort and safety
- Compatible with all cylinder head makes and models, including passenger car engine applications, from aluminum to cast iron
![ValveSeat Inductor GH](https://www.ajaxtocco.com/hs-fs/hubfs/ValveSeat-Inductor-GH_1080_x_607px.png?width=1280&height=721&name=ValveSeat-Inductor-GH_1080_x_607px.png)

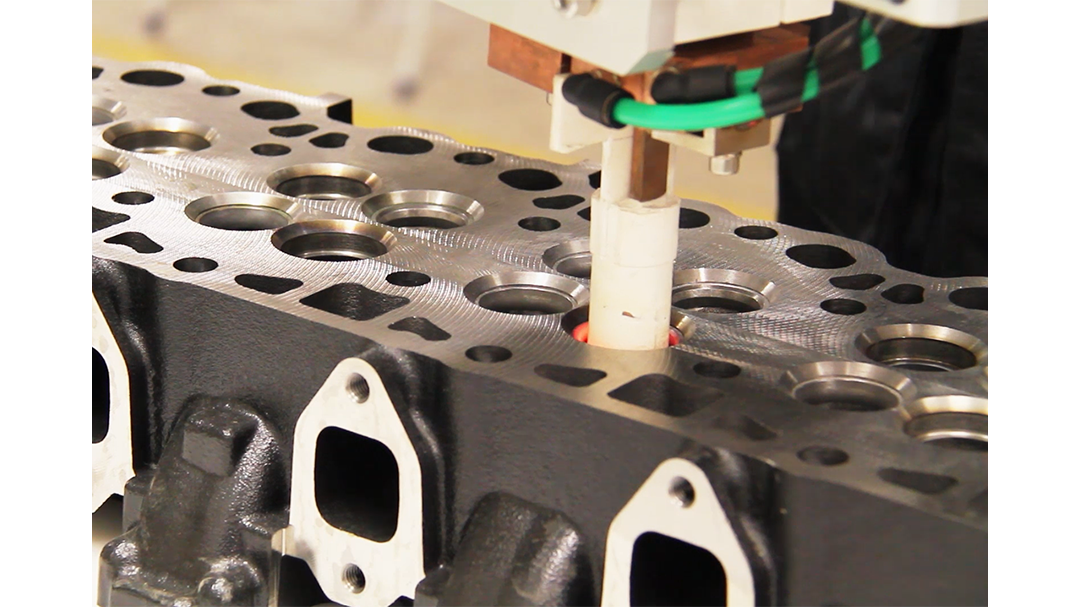

![ValveSeat Inductor GH](https://www.ajaxtocco.com/hs-fs/hubfs/ValveSeat-Inductor-GH-2_1080_x_607px%20(1).png?width=1280&height=721&name=ValveSeat-Inductor-GH-2_1080_x_607px%20(1).png)
![ValveSeat Inductor GH](https://www.ajaxtocco.com/hs-fs/hubfs/ValveSeat-Inductor-GH-3_1080_x_607px%20(1).png?width=1280&height=721&name=ValveSeat-Inductor-GH-3_1080_x_607px%20(1).png)

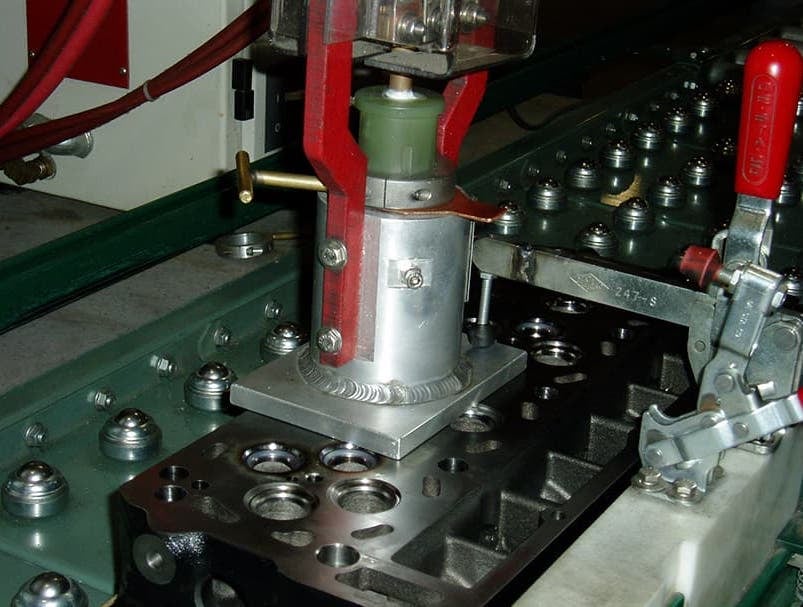

![ValveSeat Inductor Red Green](https://www.ajaxtocco.com/hs-fs/hubfs/ValveSeat-Inductor-Red-Green_1080_x_607px.png?width=1280&height=721&name=ValveSeat-Inductor-Red-Green_1080_x_607px.png)
![ValveSeat Engine Cylinder Head Hot](https://www.ajaxtocco.com/hs-fs/hubfs/ValveSeat-Engine-Cylinder-Head-Hot_1080_x_607px.png?width=1280&height=721&name=ValveSeat-Engine-Cylinder-Head-Hot_1080_x_607px.png)

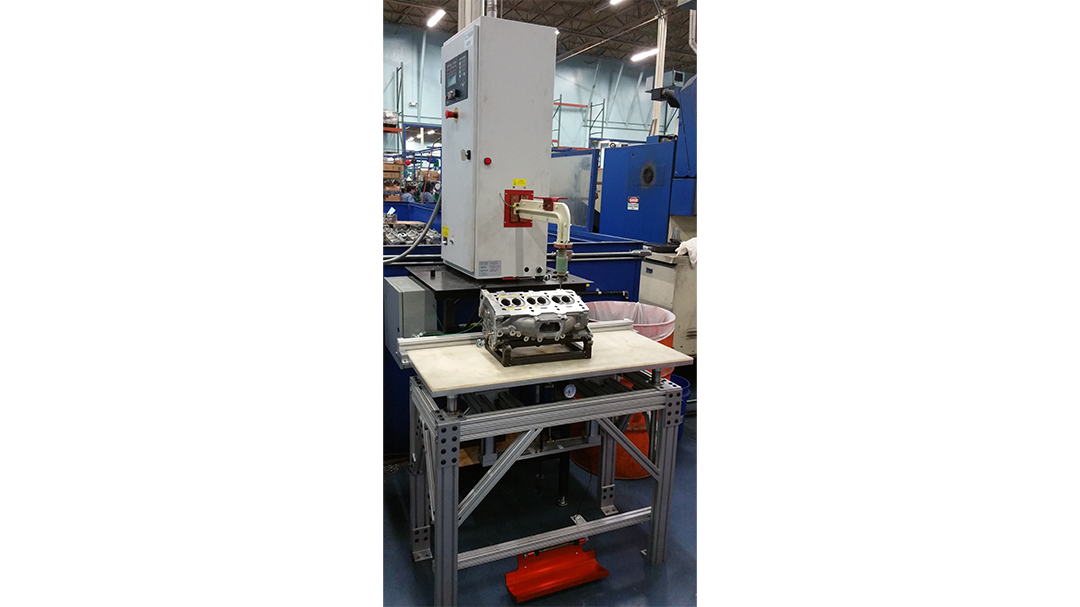

![ValveSeat 25kW Toccotron400 with lift table](https://www.ajaxtocco.com/hs-fs/hubfs/ValveSeat-25kW-Toccotron400-with-lift-table_1080_x_607px.png?width=1280&height=721&name=ValveSeat-25kW-Toccotron400-with-lift-table_1080_x_607px.png)

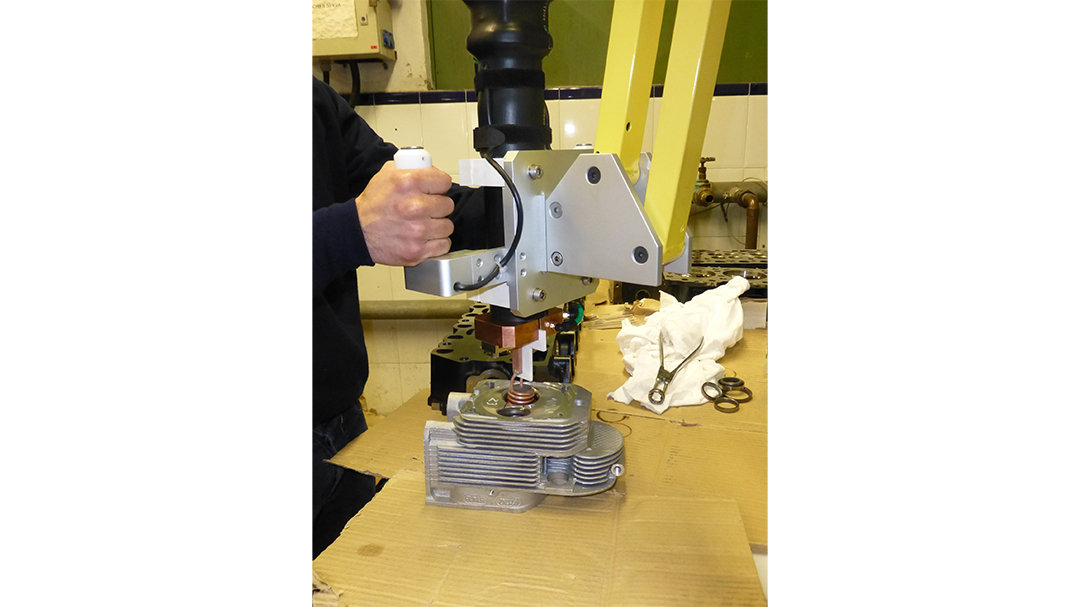

![ValveSeat IVSR deutz](https://www.ajaxtocco.com/hs-fs/hubfs/ValveSeat-IVSR-deutz_1080_x_607px.png?width=1280&height=721&name=ValveSeat-IVSR-deutz_1080_x_607px.png)
![ValveSeat Inductor Silver Yellow](https://www.ajaxtocco.com/hs-fs/hubfs/ValveSeat-Inductor-Silver-Yellow_1080_x_607px.png?width=1280&height=721&name=ValveSeat-Inductor-Silver-Yellow_1080_x_607px.png)

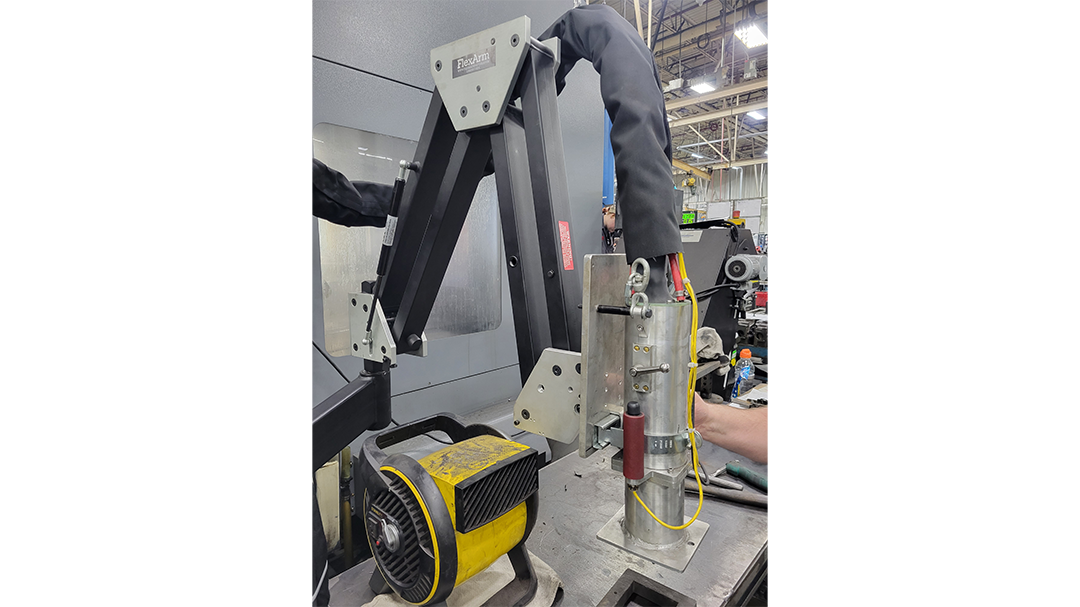

![ValveSeat Inductorr Flexarm Mount](https://www.ajaxtocco.com/hs-fs/hubfs/ValveSeat-Inductorr-Flexarm-Mount_1080_x_607px.png?width=1280&height=721&name=ValveSeat-Inductorr-Flexarm-Mount_1080_x_607px.png)
![ValveSeat Inductor Yellow Engine](https://www.ajaxtocco.com/hs-fs/hubfs/ValveSeat-Inductor-Yellow-Engine_1080_x_607px.png?width=1280&height=721&name=ValveSeat-Inductor-Yellow-Engine_1080_x_607px.png)
![ValveSeat Inductors on head](https://www.ajaxtocco.com/hs-fs/hubfs/ValveSeat-Inductors-on-head_1080_x_607px.png?width=1280&height=721&name=ValveSeat-Inductors-on-head_1080_x_607px.png)
![ValveSeat Multiple heads for removal](https://www.ajaxtocco.com/hs-fs/hubfs/ValveSeat-Multiple-heads-for-removal_1080_x_607px.png?width=1280&height=721&name=ValveSeat-Multiple-heads-for-removal_1080_x_607px.png)

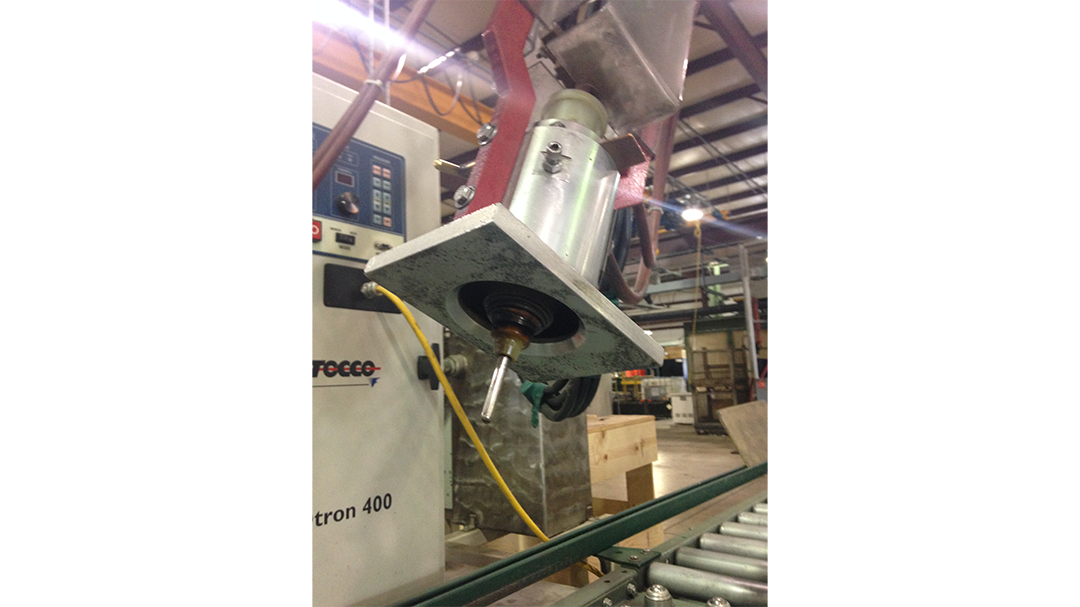

![ValveSeat Inductor TOCCOtron400](https://www.ajaxtocco.com/hs-fs/hubfs/ValveSeat-Inductor-TOCCOtron400_1080_x_607px.png?width=1280&height=721&name=ValveSeat-Inductor-TOCCOtron400_1080_x_607px.png)

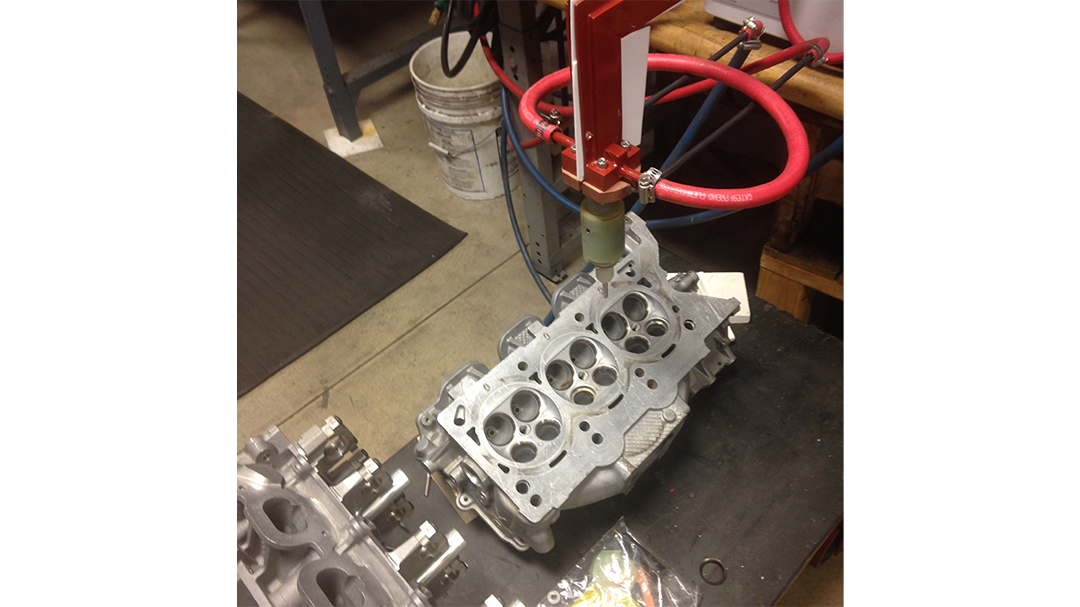

![ValveSeat Inductor with cylinder head](https://www.ajaxtocco.com/hs-fs/hubfs/ValveSeat-Inductor-with-cylinder-head_1080_x_607px.png?width=1280&height=721&name=ValveSeat-Inductor-with-cylinder-head_1080_x_607px.png)

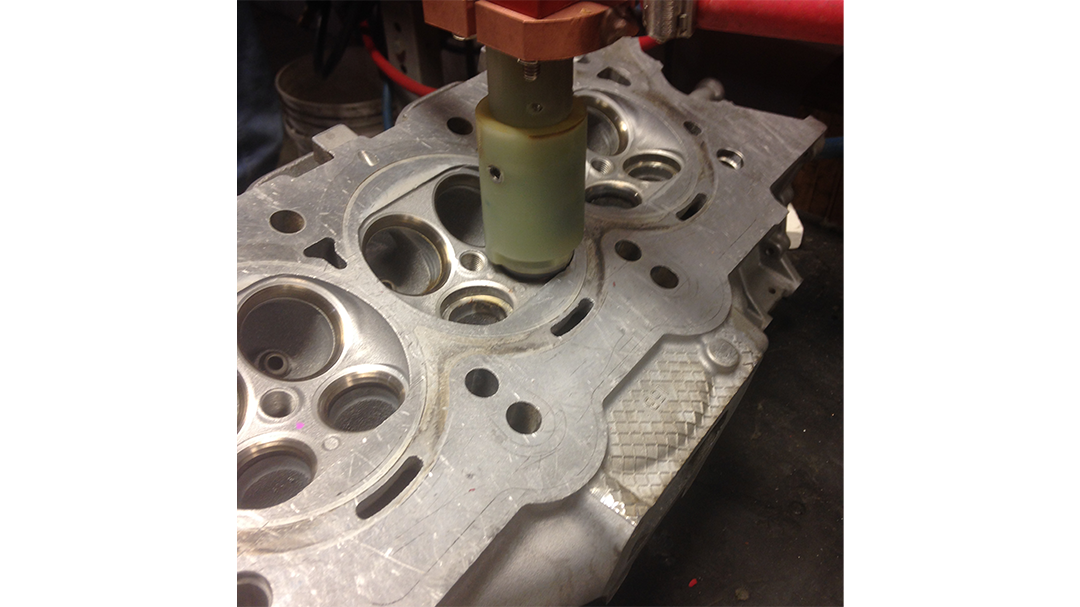

![ValveSeat Inductor in head](https://www.ajaxtocco.com/hs-fs/hubfs/ValveSeat-Inductor-in-head_1080_x_607px.png?width=1280&height=721&name=ValveSeat-Inductor-in-head_1080_x_607px.png)

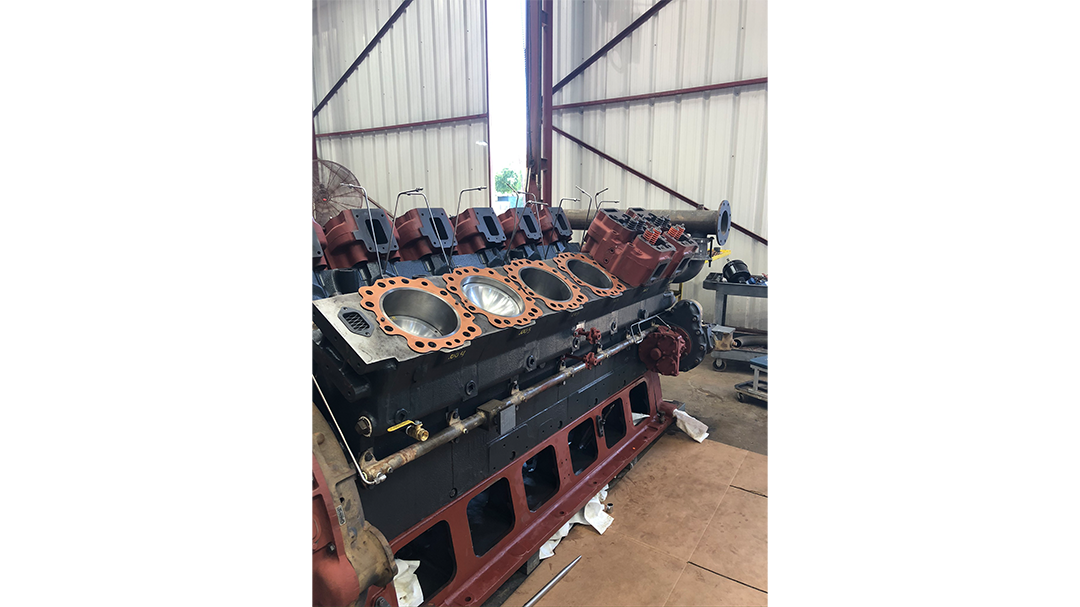

![ValveSeat extraction station](https://www.ajaxtocco.com/hs-fs/hubfs/ValveSeat-extraction-station_1080_x_607px.png?width=1280&height=721&name=ValveSeat-extraction-station_1080_x_607px.png)

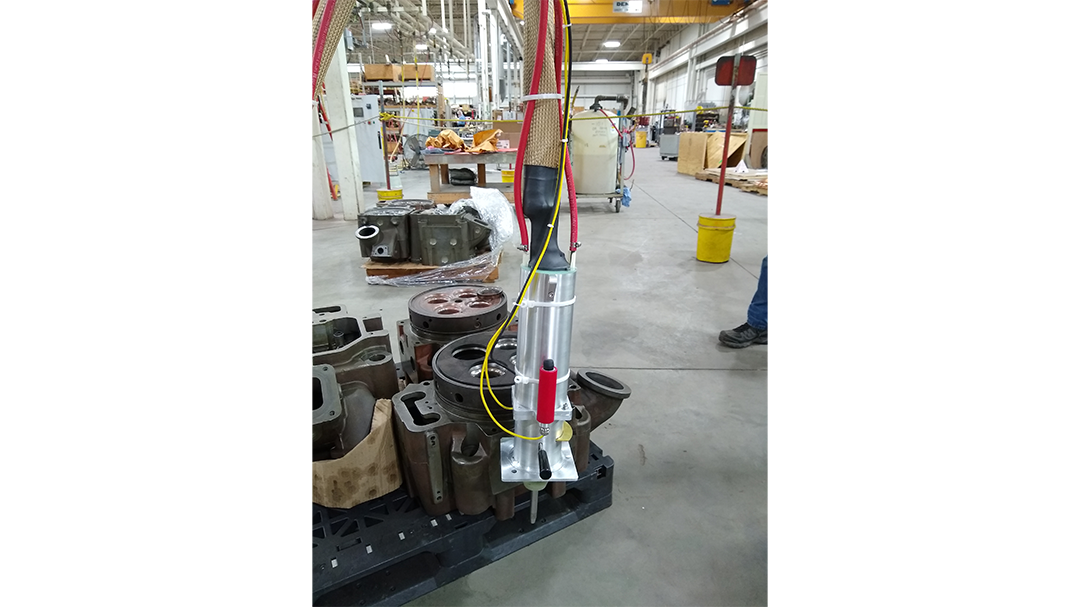

![ValveSeat Inductor hanging](https://www.ajaxtocco.com/hs-fs/hubfs/ValveSeat-Inductor-hanging_1080_x_607px.png?width=1280&height=721&name=ValveSeat-Inductor-hanging_1080_x_607px.png)
![ValveSeat IVSR processing](https://www.ajaxtocco.com/hs-fs/hubfs/ValveSeat-IVSR-processing_1080_x_607px.png?width=1280&height=721&name=ValveSeat-IVSR-processing_1080_x_607px.png)
![ValveSeat Selective Heating Thermal Image](https://www.ajaxtocco.com/hs-fs/hubfs/ValveSeat-Selective-Heating-Thermal-Image_1080_x_607px.png?width=1280&height=721&name=ValveSeat-Selective-Heating-Thermal-Image_1080_x_607px.png)

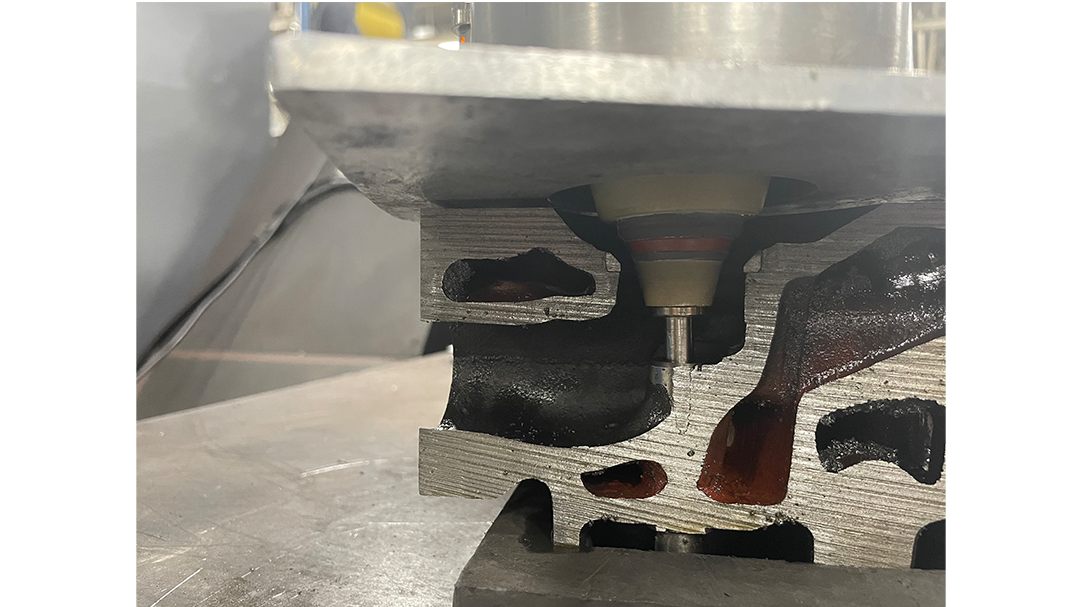

![ValveSeat Inductor cutout image](https://www.ajaxtocco.com/hs-fs/hubfs/ValveSeat-Inductor-cutout-image_1080_x_607px.png?width=1280&height=721&name=ValveSeat-Inductor-cutout-image_1080_x_607px.png)

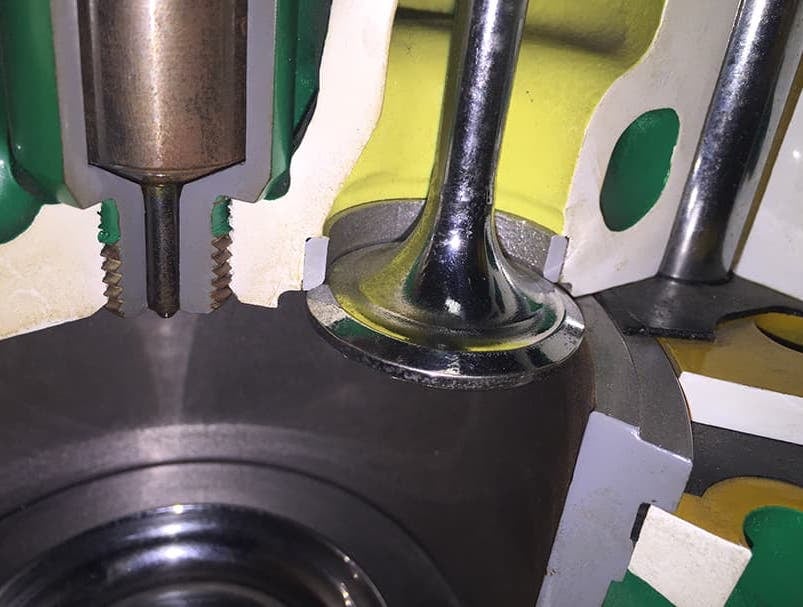

![ValveSeat Inductor Cutout](https://www.ajaxtocco.com/hs-fs/hubfs/ValveSeat-Inductor-Cutout-image2_1080_x_607px.png?width=1280&height=721&name=ValveSeat-Inductor-Cutout-image2_1080_x_607px.png)

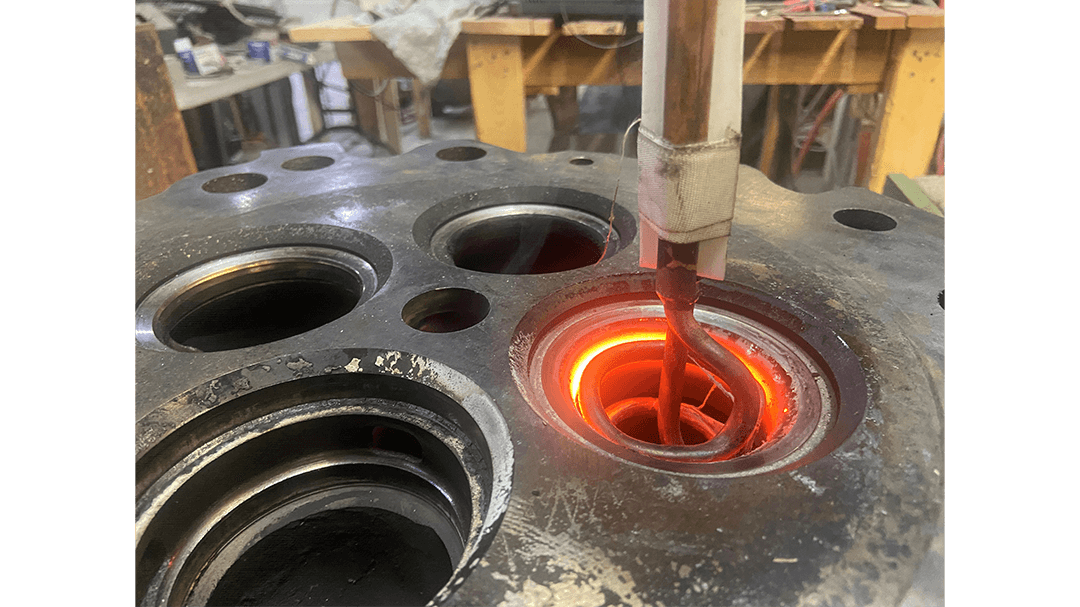

![ValveSeat Inductor hot Waukesha 4 exhaust seat](https://www.ajaxtocco.com/hs-fs/hubfs/ValveSeat-Inductor-hot-Waukesha-4-exhaust-seat_1080_x_607px%20(1)%20(1).png?width=1080&height=608&name=ValveSeat-Inductor-hot-Waukesha-4-exhaust-seat_1080_x_607px%20(1)%20(1).png)
![ValveSeat Inductor GH](https://www.ajaxtocco.com/hubfs/ValveSeat-Inductor-GH_1080_x_607px.png)
![ValveSeat Inductor GH](https://www.ajaxtocco.com/hubfs/ValveSeat-Inductor-GH-2_1080_x_607px%20(1).png)
![ValveSeat Inductor GH](https://www.ajaxtocco.com/hubfs/ValveSeat-Inductor-GH-3_1080_x_607px%20(1).png)
![ValveSeat Inductor Red Green](https://www.ajaxtocco.com/hubfs/ValveSeat-Inductor-Red-Green_1080_x_607px.png)

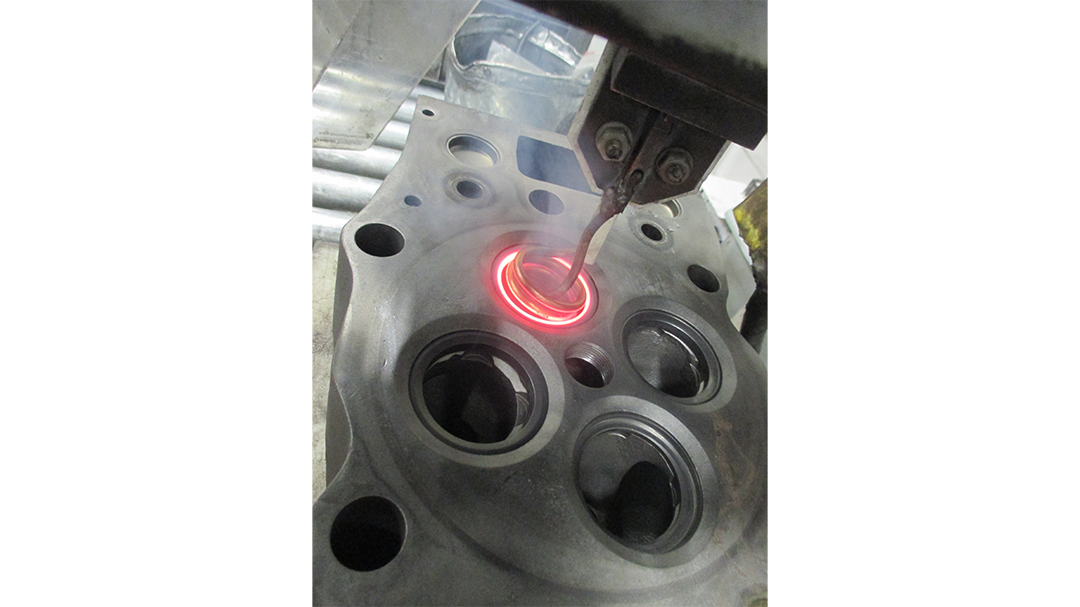

![ValveSeat Engine Cylinder Head Hot](https://www.ajaxtocco.com/hubfs/ValveSeat-Engine-Cylinder-Head-Hot_1080_x_607px.png)
![ValveSeat 25kW Toccotron400 with lift table](https://www.ajaxtocco.com/hubfs/ValveSeat-25kW-Toccotron400-with-lift-table_1080_x_607px.png)
![ValveSeat IVSR deutz](https://www.ajaxtocco.com/hubfs/ValveSeat-IVSR-deutz_1080_x_607px.png)

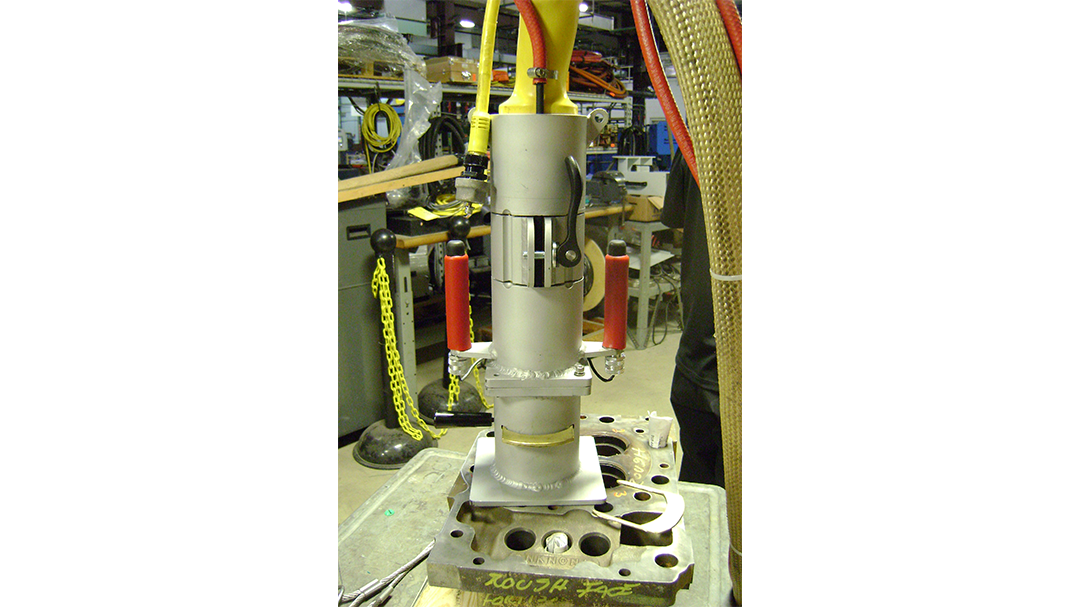

![ValveSeat Inductor Silver Yellow](https://www.ajaxtocco.com/hubfs/ValveSeat-Inductor-Silver-Yellow_1080_x_607px.png)
![ValveSeat Inductorr Flexarm Mount](https://www.ajaxtocco.com/hubfs/ValveSeat-Inductorr-Flexarm-Mount_1080_x_607px.png)

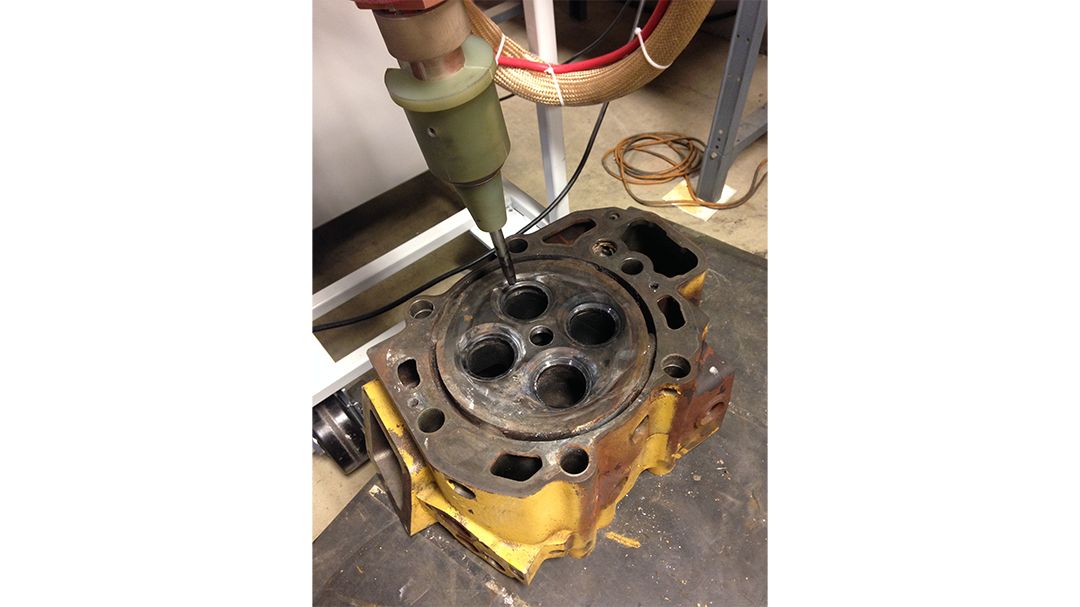

![ValveSeat Inductor Yellow Engine](https://www.ajaxtocco.com/hubfs/ValveSeat-Inductor-Yellow-Engine_1080_x_607px.png)

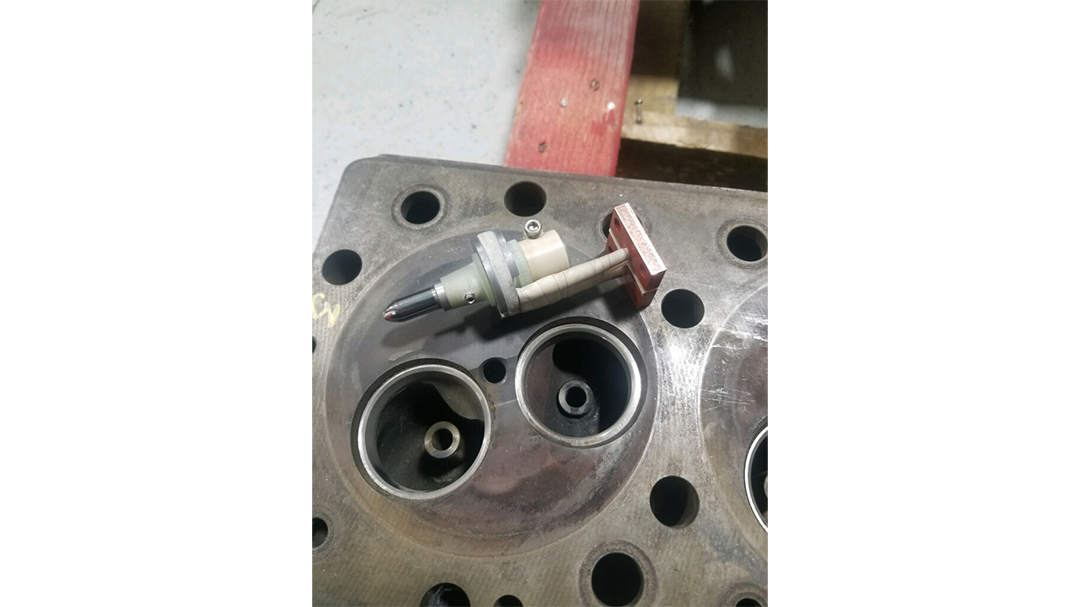

![ValveSeat Inductors on head](https://www.ajaxtocco.com/hubfs/ValveSeat-Inductors-on-head_1080_x_607px.png)

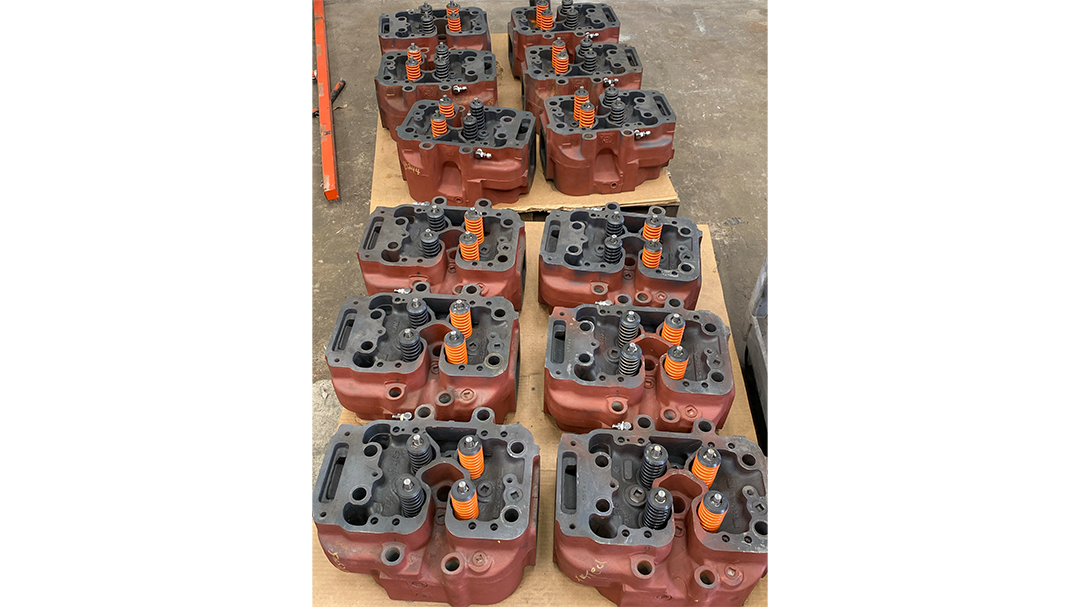

![ValveSeat Multiple heads for removal](https://www.ajaxtocco.com/hubfs/ValveSeat-Multiple-heads-for-removal_1080_x_607px.png)
![ValveSeat Inductor TOCCOtron400](https://www.ajaxtocco.com/hubfs/ValveSeat-Inductor-TOCCOtron400_1080_x_607px.png)
![ValveSeat Inductor with cylinder head](https://www.ajaxtocco.com/hubfs/ValveSeat-Inductor-with-cylinder-head_1080_x_607px.png)
![ValveSeat Inductor in head](https://www.ajaxtocco.com/hubfs/ValveSeat-Inductor-in-head_1080_x_607px.png)
![ValveSeat extraction station](https://www.ajaxtocco.com/hubfs/ValveSeat-extraction-station_1080_x_607px.png)
![ValveSeat Inductor hanging](https://www.ajaxtocco.com/hubfs/ValveSeat-Inductor-hanging_1080_x_607px.png)

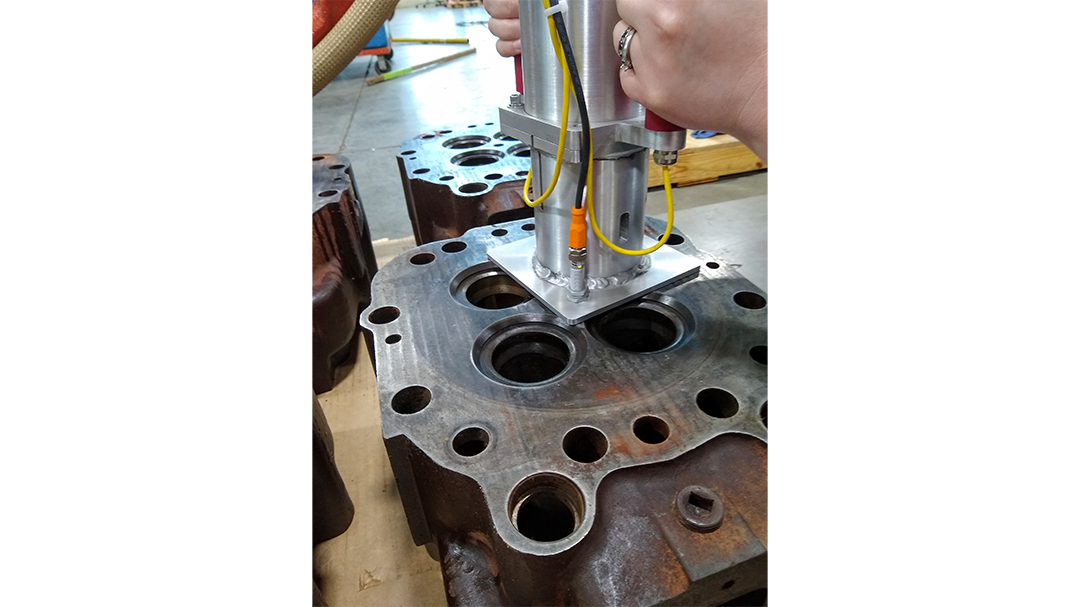

![ValveSeat IVSR processing](https://www.ajaxtocco.com/hubfs/ValveSeat-IVSR-processing_1080_x_607px.png)
![ValveSeat Selective Heating Thermal Image](https://www.ajaxtocco.com/hubfs/ValveSeat-Selective-Heating-Thermal-Image_1080_x_607px.png)
![ValveSeat Inductor cutout image](https://www.ajaxtocco.com/hubfs/ValveSeat-Inductor-cutout-image_1080_x_607px.png)
![ValveSeat Inductor Cutout](https://www.ajaxtocco.com/hubfs/ValveSeat-Inductor-Cutout-image2_1080_x_607px.png)
![ValveSeat Inductor hot Waukesha 4 exhaust seat](https://www.ajaxtocco.com/hubfs/ValveSeat-Inductor-hot-Waukesha-4-exhaust-seat_1080_x_607px%20(1)%20(1).png)
Providing Heat Treating Solutions Since 1916
Focused, Selective Non-Contact Electromagnetic Heating Only Heats Valve Seats

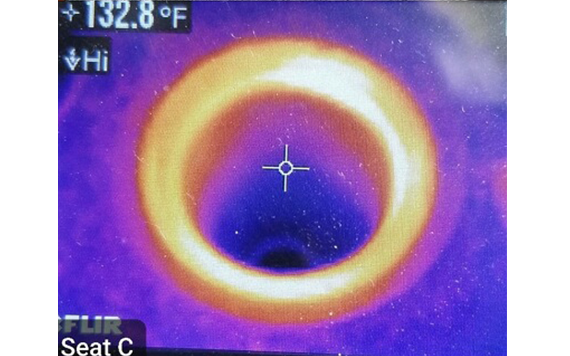

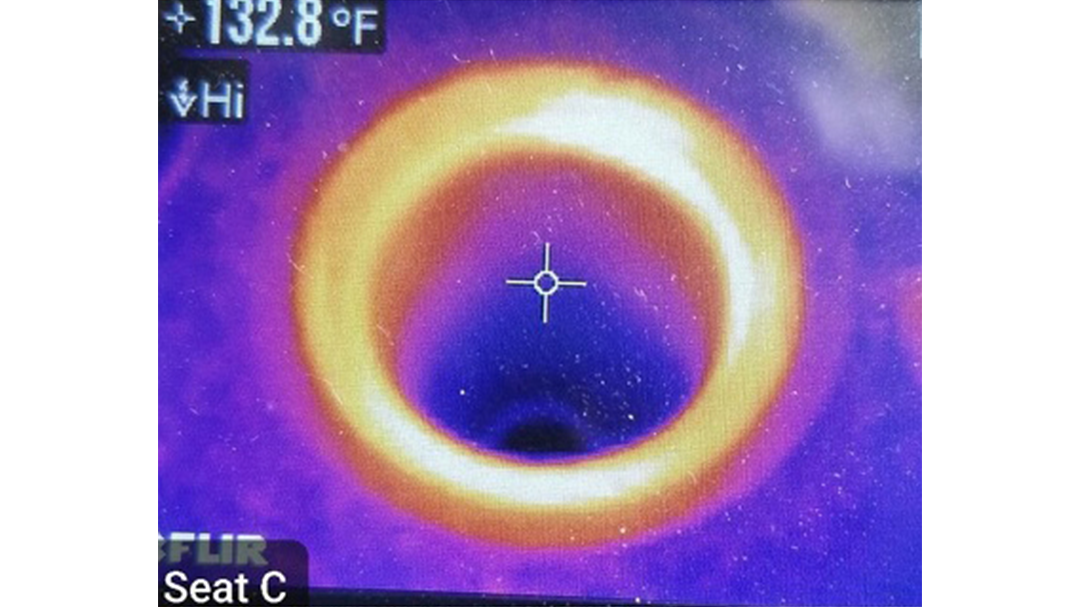

Ajax TOCCO’s exclusive IVSR induction heating technology only heats the valve seat without directly heating the cylinder head as seen in this thermal image. Seats are heated in just a few seconds while the cylinder head remains cool.
![ValveSeat Selective Heating Thermal Image](https://www.ajaxtocco.com/hs-fs/hubfs/ValveSeat-Selective-Heating-Thermal-Image_570x356px.png?width=570&height=356&name=ValveSeat-Selective-Heating-Thermal-Image_570x356px.png)

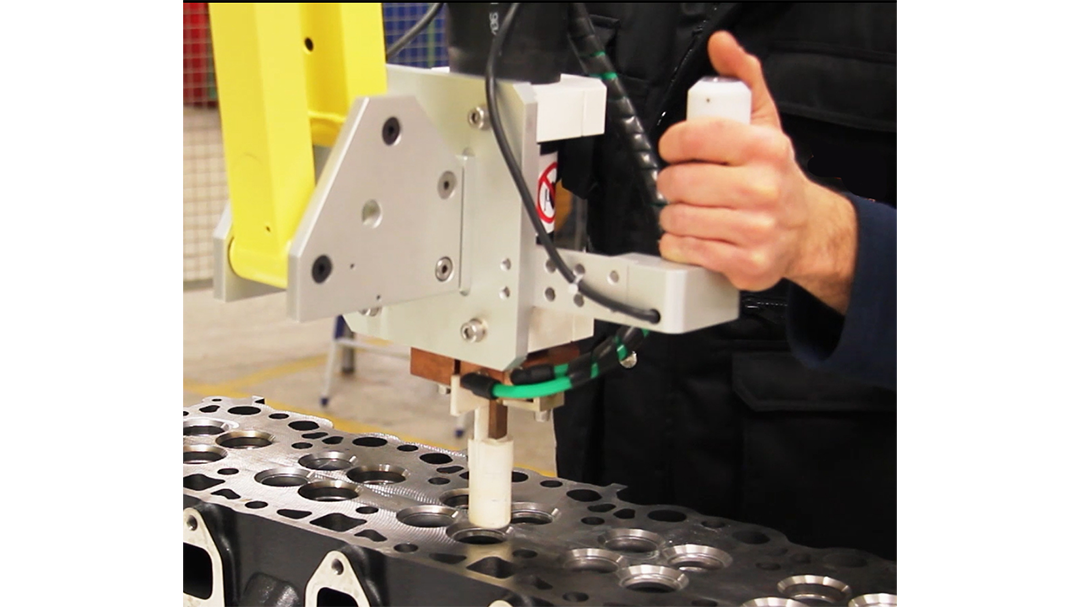

Precision Fabricated Inductors and Tooling with the process “Built-In”

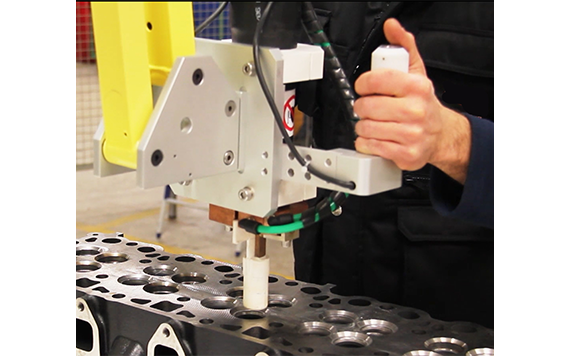

Operator-friendly ergonomic tooling with the “process built-in” improves operator comfort and efficiency. Repeatability is built-in with application-specific tooling eliminating guesswork and ensuring application success. Heating inductors are built using the latest manufacturing techniques including CNC machining and 3D additive-manufactured copper heating inductors.
![ValveSeat Inductor GH](https://www.ajaxtocco.com/hs-fs/hubfs/ValveSeat-Inductor-GH_570x356px.png?width=570&height=356&name=ValveSeat-Inductor-GH_570x356px.png)

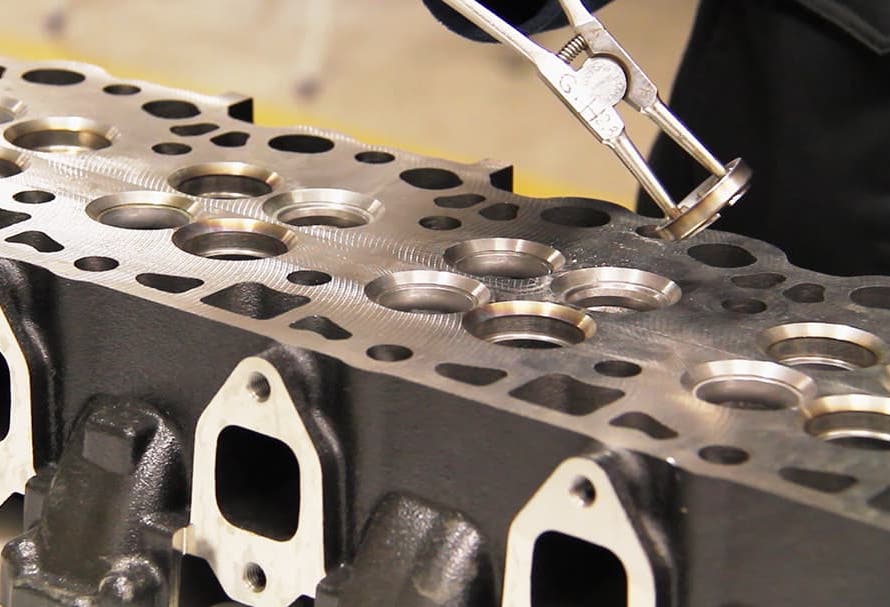

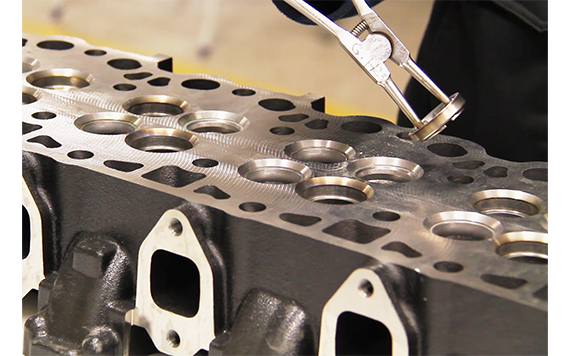

Reduce force and time required to extract pressed-in valve seats
Once the seats are heated, and cooled, they permanently shrink, allowing much less force than would normally be required for removal. In some cases, basic hand tools are all that is required to pull the seats.
![ValveSeat Inductor GH](https://www.ajaxtocco.com/hs-fs/hubfs/ValveSeat-Inductor-GH-3_570x356px.png?width=570&height=356&name=ValveSeat-Inductor-GH-3_570x356px.png)
